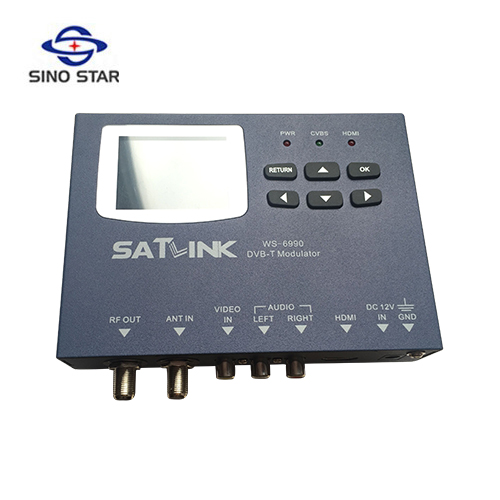

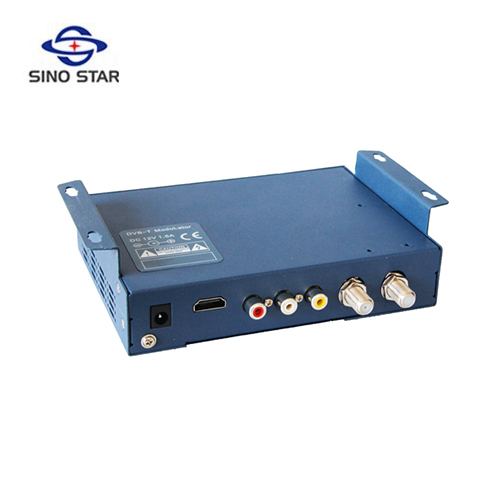

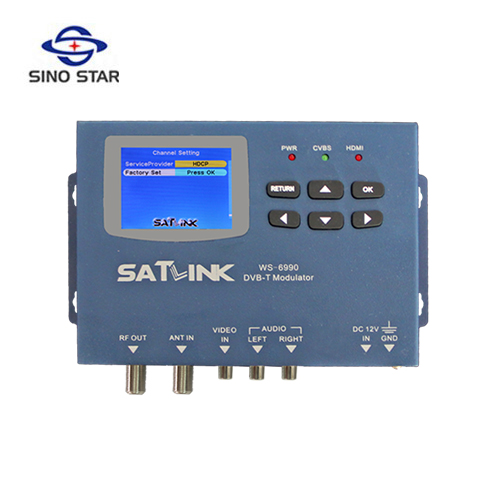

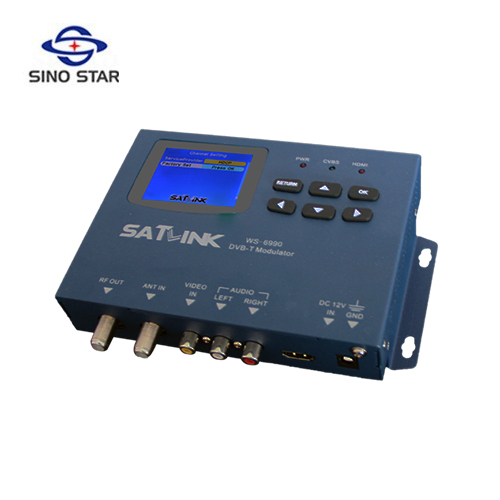

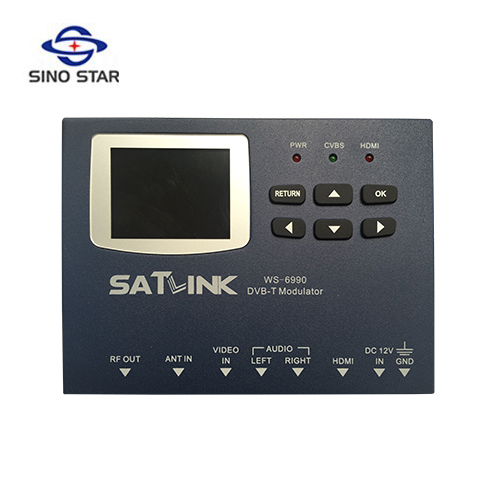

WS-6990

Features：
- High level of integration, high-performance, Full-featured, integrated design
- Single input modulator that converts analogue A/V source to a DVB-T channel
- Standard COFDM modulation and H.264 encoding
- Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
- Bandwidth: 6/7/8MHz
- Frequency range: 50~860MHz
- Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
- 2.4-inch color LCD display
- Small size and light weight
- Carriers 2K and 8K
- User friendly setup and control
- Compact and wall mountable

Specification:
Modulator
- Standard: DVB-T
- Constellation: QPSK / 16QAM / 64QAM
- Bandwidth: 6 / 7 / 8 MHz
- Carriers: 2K / 8K
- Guard Interval: 1/4, 1/8, 1/16, 1/32
- Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
- MER: 35 dB
- Frequency Range: 50 ~ 860 MHz
- Output Leve:l 70 ~ 100 dBuV
- Output Impedance: 75Ω

Video
- Input Format: CVBS/HDMI
- Encoding Format: H.264
- Video Resolution: 576i PAL / 480i NTSC/1080p
- Connector: RCA/HDMI 1.3

Audio
-Input Format: Stereo L/R channel
- Encoding Format: MPEG-1 Audio Layer II
- Connecto: RCA

General
- Power Source: DC 12V / 1.5A
- Operating Temperature: 0 ~ +50 ℃
- Dimensions: 155mm(L) * 114mm(W) * 33mm(H)
- Weight: 0.5Kg
