Main Function
Fully DVB Compliant
CPU ALI3329
Freq range: 950mHz -2150mHz
Signal level: 65dbm~25dbm
3.5 inch TFT LCD HD Screen
The battery gauge to display function
Shows strength and quality readings in the same view
Super sensitive metering allows you to squeeze every bit of signal from the dish
Support 10 languages:English, French, Russian, Arabic , farsi, Portuguese, Turkish
AV in and AV out function
Sound warning prompt locking satellite
Bit Error Rate Readout
BISS PATCH KEY
Carrier to Noise Readout
Indicator Lights for 13/18 volts
Indicator lights for 22 KHz
Easy Satellite Manager (EDIT, DELETE, SCAN, etc.)
Short Circuit Protection
DiSEqC & 22kHz Switch Control
DiSEqC 1.2 can be formulated a motor drive shaft antenna
Symbol rate: 2mbps~45mbps
Video format: PAL/NTSC/SECAM
Software Upgradeable via USB
Includes 240v Charger
12volt Cigarette Lighter Cable
USB Cable & Strap
Fast Charge LI-ION battery (3000mA), can last up to 4 hours
Double color LED sufficient instructions, red light for charging status, a green light filled with state
Size: 155x92x45mm,Very small and portable.
Technical Specification:
|
System capabilities |
Fully DVB compliant |
Yes |
|
|
LNB/Tuner input |
Connector |
F type,male |
|
|
Frequency range |
950MHz-2150MHz |
||
|
Signal lever |
-65dBm~-25dBm |
||
|
LNB supply |
13/18V,max400mA |
||
|
LNB switch control |
0K/22KHz |
||
|
DiSEqC |
Ver 1.0 / 1。2 |
||
|
Demodulator |
Front end |
QPSK |
|
|
Symbol rate |
2Mbps~45Mbps |
||
|
SCPC and MCPC Capable |
Yes |
||
|
Spectral inversion |
Auto conversion |
||
|
System resource |
Processor |
32bit processor (200MHz) |
|
|
|
SDRAM |
16Mbyte |
|
|
FLASH |
2Mbyte |
||
|
EEPROM |
8Kbyte |
||
|
Video decoder |
MPEG 2 |
Main Proflie@Main Level |
|
|
Data Rate |
up to 15M bits/s |
||
|
Resolution |
720*576,720*480 |
||
|
Video format |
PAL/NTSC/SECAM |
||
|
MPEG Audio |
MPEG 1 layer 1&2 |
|
|
|
Type |
Mono |
||
|
Sampling rates |
32,44.1 and 48KHz |
||
|
Serial data interface |
Connector |
USB type |
|
|
Power supply |
Li-oN Battery |
3000 mA |
|
|
|
Supply voltage |
12Volt |
|
|
|
charger |
90-240V |
|
|
Panel connectors |
Digital tuner input |
F type, male |
|
|
Physical Specification |
Size |
15．5X9.2x4.5 (cm) |
|
|
|
Weight(Net) |
1.5 Kg |
|

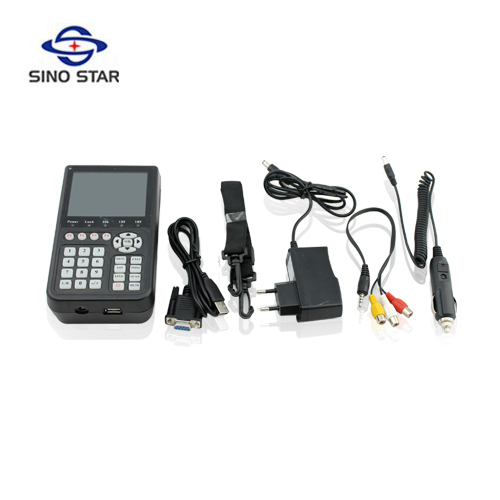

Package Contains:

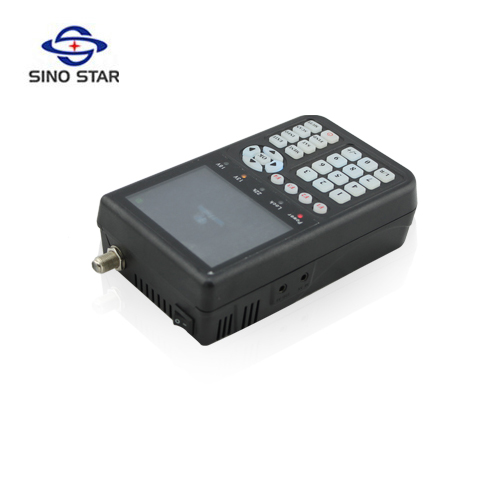

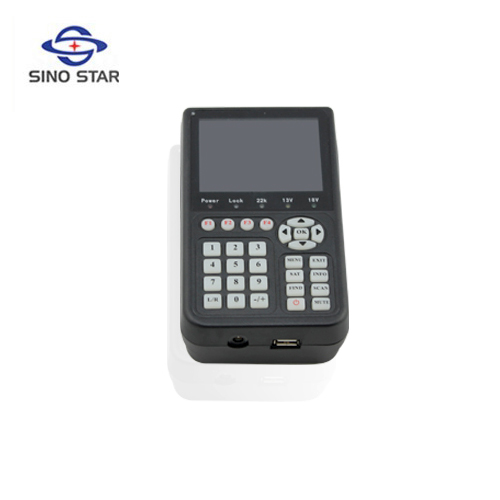

1 x 3.5" Spectrum Analyzer/Signal Finder
1 x USB data cable
1 x Power source adapter
1 x Car adapter

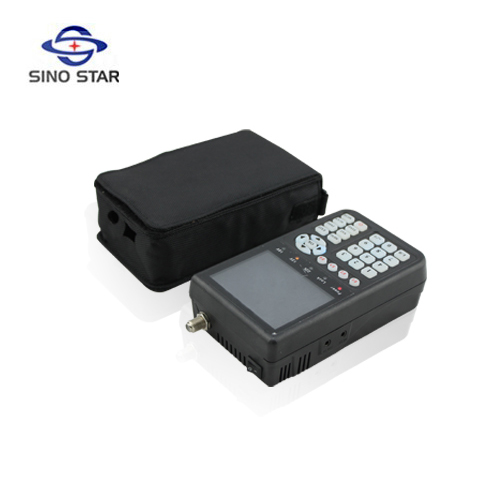

1 x Backpack
1 x User Manual
1 x Audio/video line
