Microprocessor ALI3601S, Main Function
3.5 inch TFT LCD HD Screen
HD MPEG-4, H.264/AVC DVB-S,DVB-S2 Finder
HDMI interface for HD TV
With USB PVR function(real time/Time shift/timing)
With Media player function
With biss and cryptoworks
Sharp can tunner, good sensitivity receiption and separately can tunner
solution:3601+3501+sharp tunner With PVR and Media player
Support Biss and dongle
The battery gauge to display function
Shows strength and quality readings in the same view
AV in and AV out function
Sound warning prompt locking satellite
DiSEqC & 22kHz Switch Control
Indicator Lights for 13/18 volts
Indicator lights for 22 KHz
12volt Cigarette Lighter Cable

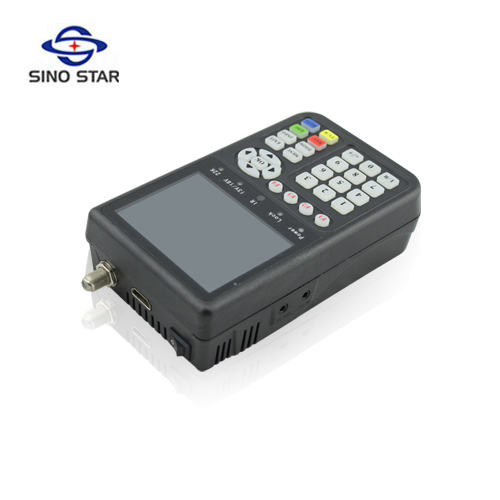

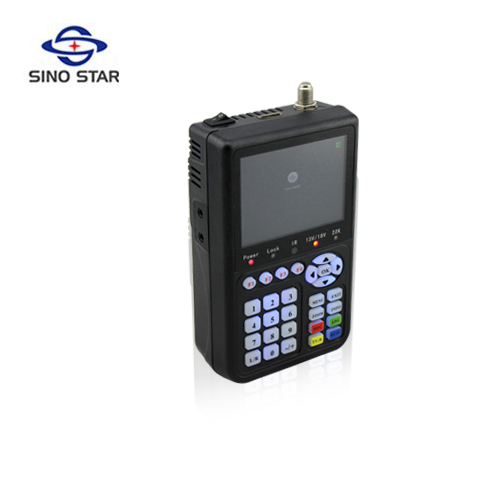

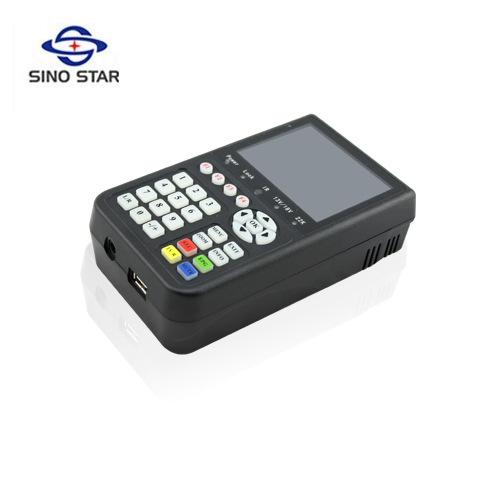

Ali 3601 HD Satellite Finder
| Key Specifications |
|
Fully compliant with DVB-S/S2 standard |
|
Green Power(Standby<0.5W) supported |
|
Automatic search satellites and transponders |
|
Multi-Satellite(64 Satellites or customized) |
|
5000 or more channels memory space |
|
SCPC& MCPC receivable from C/Ku band satellite |
|
Network Search. |
|
Audio decoder compliant with MPEG-1,MPEG-2(Layer I/II),MP3,WMA |
|
Option for AC-3, E-AC-3 and HE-AAC 5.1 multi-channel decoding |
|
1080p/1080i/720p/570p/480p/576i/480i YPbPr/RGB component output |
|
All NTSC/PAL/SECAM TV Standard supported |
|
HDMI 1.3 transmitter output |
|
User friendly and easy-to-use menu system |
|
Multi-languge OSD supported |
|
Fully supporting Electronic Program Guide(EPG) |
|
Multi-language audio and subtitle reception |
|
Teletext and subtitle output through OSD |
|
Zoom, Game. -Satco DX for channel update. |
|
Parental Lock function, PVR function supported |
|
Supporting pictures with JPEG, BMP,PNG, zoom fuction supported |
|
Capable to playing picture and music at the same time |
|
Games included, Software upgrade by USB2.0 interface |
|
Detail Specification: |
|
|
|
Main system: |
|
CPU: Ali 3601 |
|
Flash Memory: 32M bytes |
|
DDR2: 1024M bits |
|
|
|
Tuner & Demodulator: |
|
ANT. Connector: IEC TYPE, female |
|
Loop Output: IEC TYPE, male |
|
Input Frange range: 54--803MHz |
|
Input Impedance: 75 Ω |
|
Input Signal level: -82dBm to -20 dBm (average power) |
|
|
|
Mpeg Audio / Vedio Decocding: |
|
Video: MPEG-2 (ISO/IEC 13818-2) / MPEG-4 (ISO/IEC14496) / H.264 (ISO/IEC14496-10) 1080P@30 fps |
|
|
|
Input rate: Max. 60M bits |
|
Aspect ratio: 4:3, 16:9, letter box |
|
Video Resolution: 1920*1080p; 1280*720p; 720*576i |
|
Audio decoding: MPEG-1 Layer I/II, MPEG-2 layer I/II, AAC, AAC+/HE-AAC/AC3 |
|
Audio mode: Mono/Joint Stereo/Stereo |
|
Sample rate: 32, 44.1 & 48 MHz |
|
|
|
Power supply: |
|
Input voltage: DC 9-12V |
|
Consumption: Max. 11w |
|
Protection: Separate fuse & chassis ground or electric shock protection |
|
|
|
Operation Enviroment: |
|
Operation tempreture: +0°C~70°C |
|
Storage tempreture: -40°C~+65°C |
