3.5 Inch TFT LCD Screen Display
Input Frequency: 950~2150MHz
Input Level: -65~ -25dBm
Input Impedance: 75Ω
Measurement Type: signal strength,quality; BER; S/N;PWR
Search Mode: Auto,Blind,Manual
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Supportting DISEQC 1.0,1.1,1.2 and 22khz Tone
LNB Power Supply:18/13V(IMax 400mA)
Support both AV out and AV in
Speaker Integrated

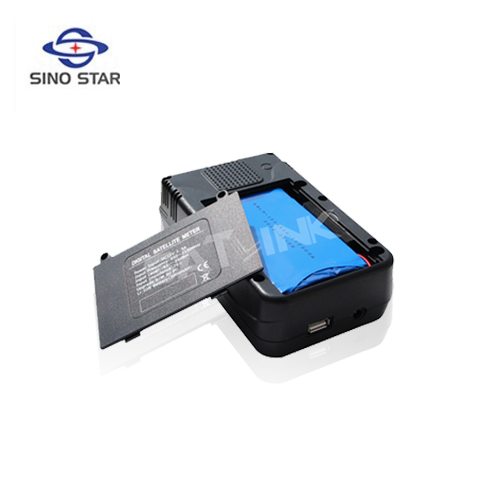

8.4V/3000mAh Lion Battery Included
Max Operating Time:4 hours
12V/1.5A DC Adapter
USB Port For Software Upgrades

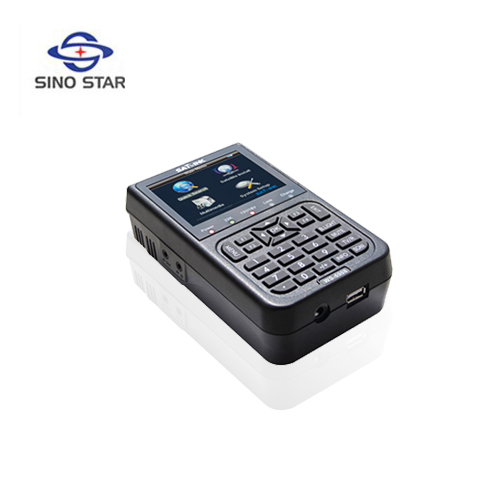

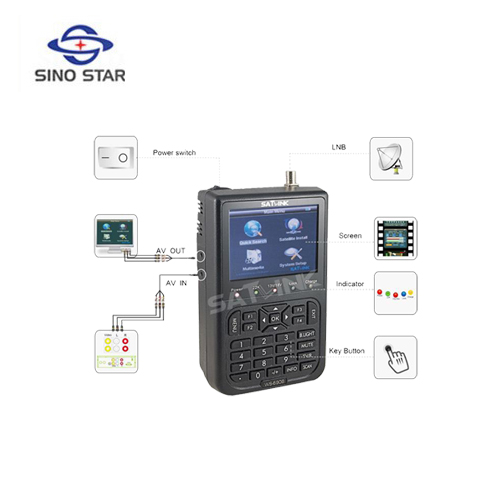

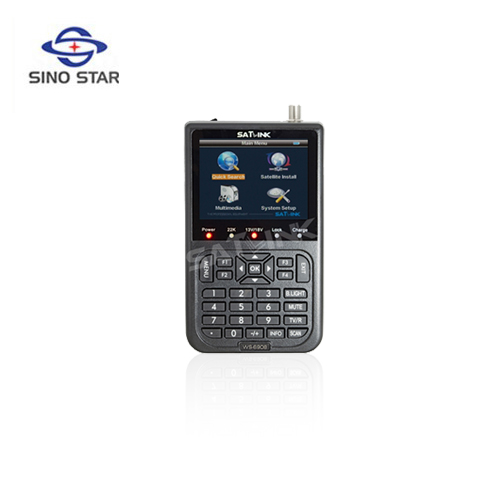

Front of indicator picture

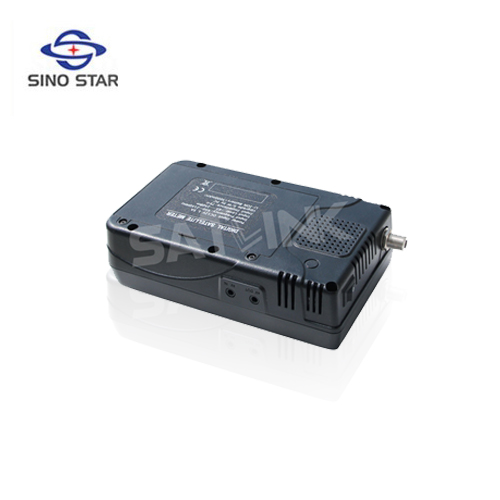

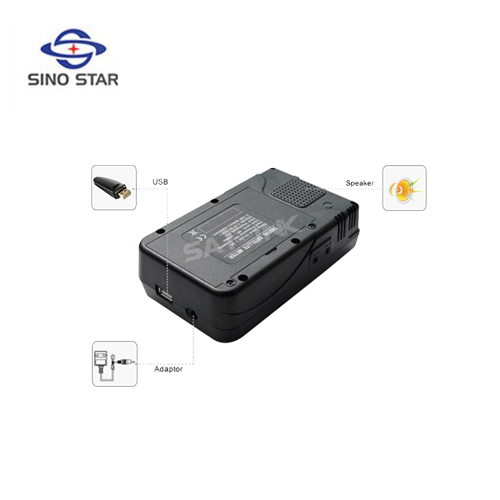

Back of indicator picture
