280USD
3.5 Inch High Definition TFT LCD Screen
Both AV IN And AV Out
8.4V/3000mAh Lion Battery Included
Max Operating Time:4 hours
12V/1.5A DC Adapter
Sound and Light Alarm for Locking Signal
USB Port For Software Upgrades
Speaker Integrated
VB-S
Input Frequency 950～2150MHz
Input Level -65～ -25dBm
Input Impedance 75Ω
Auto Calculate Angle of AZ ,EL
Support DISEQC 1.0,1.1,1.2 and 22khz Tone
Measurement Type: signal strength,quality; BER; S/N;PWR
Search Mode: Auto,Blind,Manual
LNB Power Supply:18/13V(IMax 400mA)
DVB-T
Frequency Range: 46MHz-862MHz
Level range:40dBμV-110dBμV
Input Impedance:75Ω
Multichannel check
Demodulation:QPSK,16QAM,64QAM
Measurement Type: signal strength,quality; MER; S/N;PWR
Search Mode: Auto,Manual
ANT Power Supply:5V/12V/24V

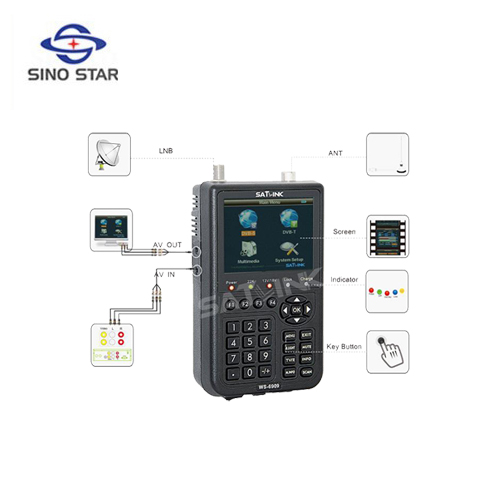

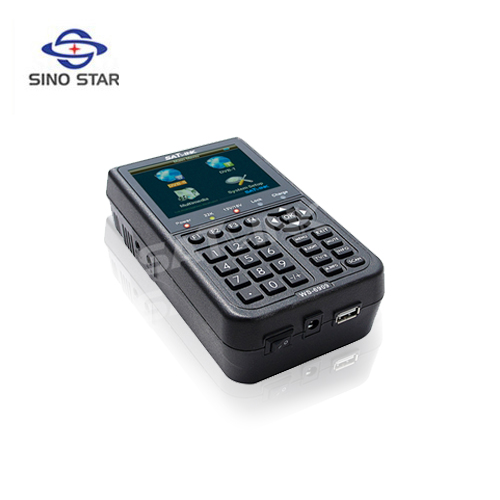

Front of indicator picture

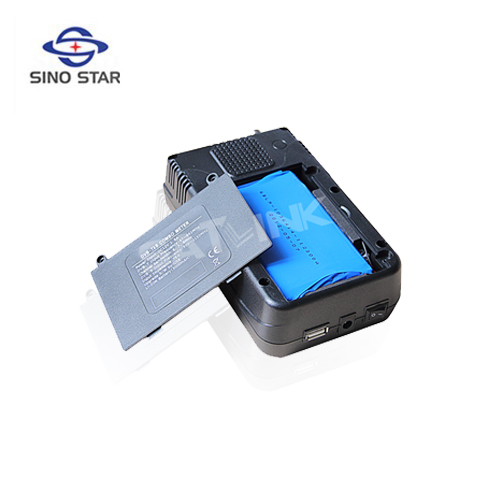

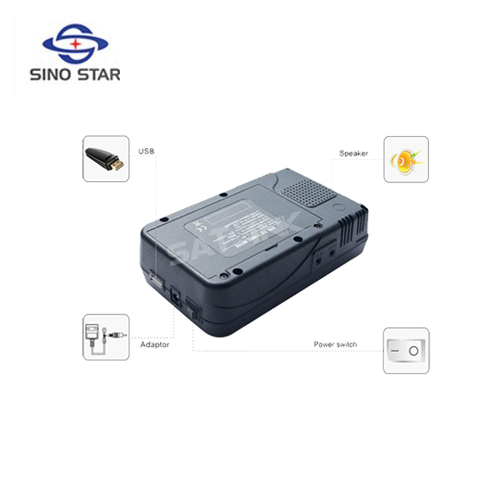

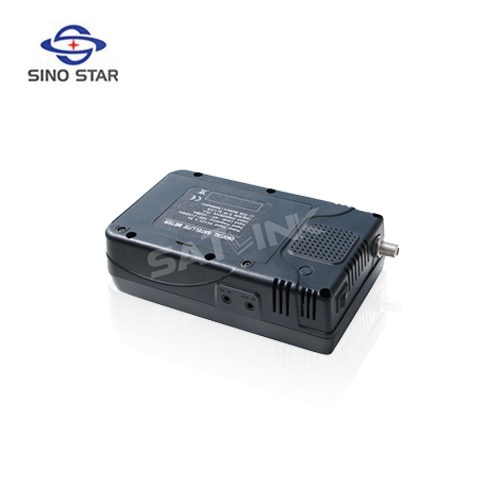

Back of indicator picture
