| TRANSMISSION STANDARDS |
| DVB-S |

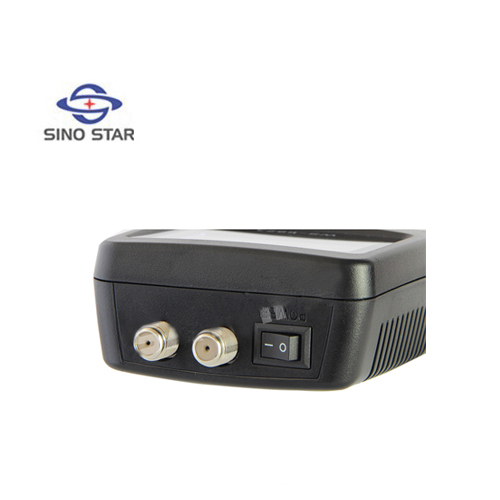

| SATELLITE INPUT/DEMODULATION |
| Connector Type |
F Type |
| Input Frequency |
950 to 2150 MHz |
| Signal Input Level |
- 65 to -25 dBm |
| Band Switch Control |
22KHz |
| LNB Supply |
13V/18V, IMax300mA |
| Demodulation Type |
QPSK |
| Symbol Rate |
2 |

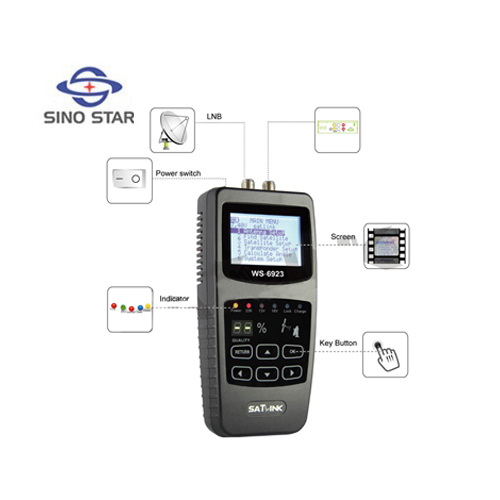

| LCD FEATURES |
| LCD Type |
FSTN Positive transflective |
| Number of Dots |
128 x64 |
| Active area (WxH) |
59.6x43 mm2 |

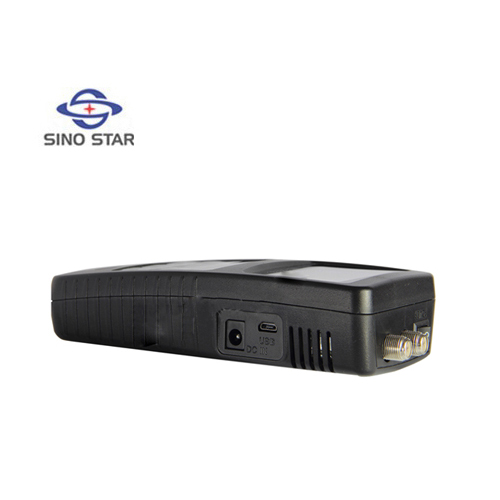

| DATA SERVICE PORT |
| Connector |
USB |
| Data protocol |
USB to RS-232 |
| POWER SUPPLY |
| Li-Ion Battery |
8.4V/800mAh |
| Adapter |
OUTPUT :DC12V/1A, INTUPT :100-240VAC 50/60Hz |
| Power consumption |
Max. 5W |
| PHYSICAL CHARACERSTICS |
| Size (W x D x H) |
8x16x4(cm3) |
| Net Weight |
0.25kg |
